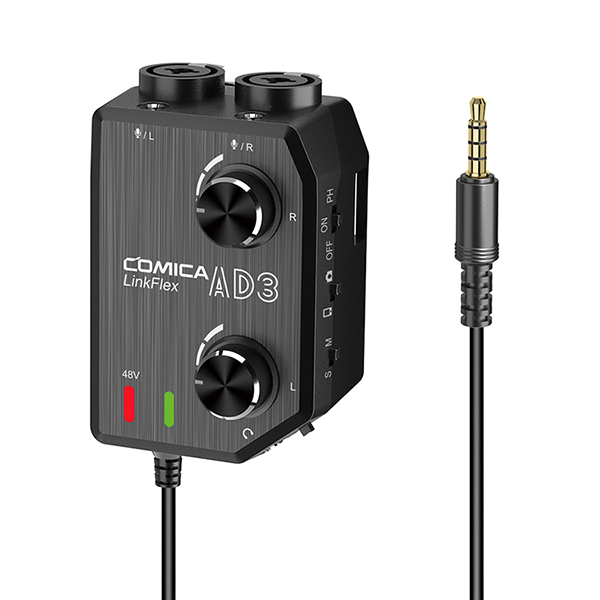

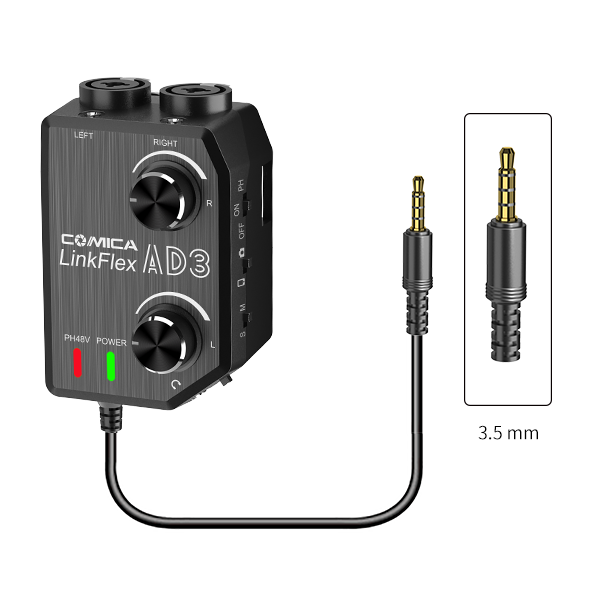

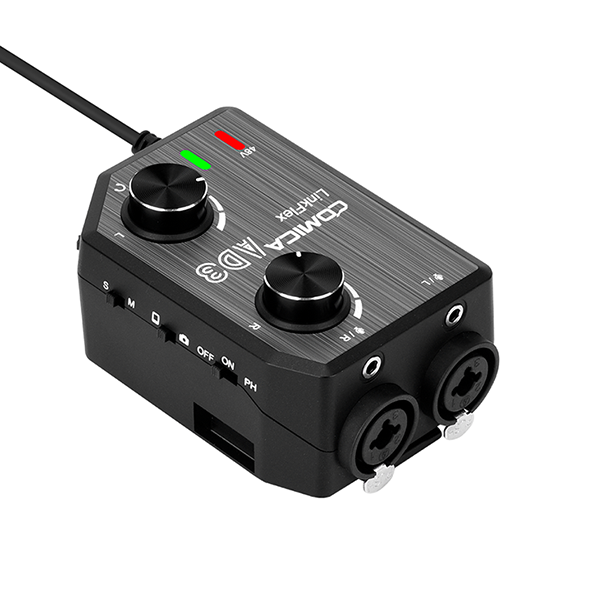

LinkFlex AD3
Two-channels XLR / 3.5mm / 6.35mm Audio Preamp Mixer / Adapter / Interface for Camera and Smartphone
立即购买

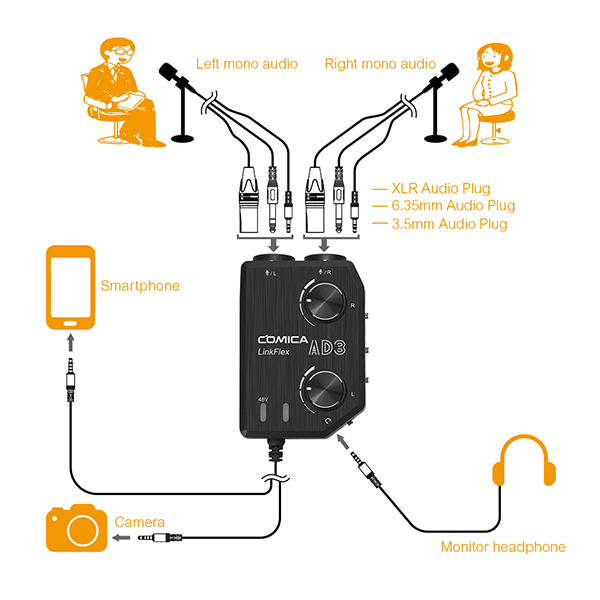

● Support 2-Channels Audio Input

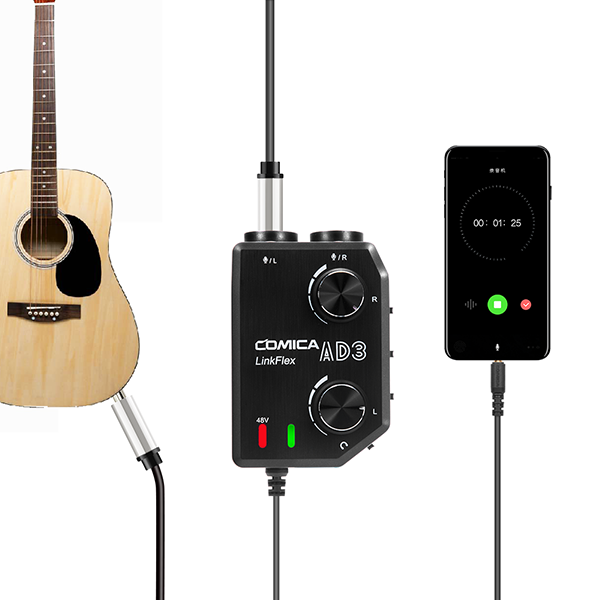

● XLR / 3.5mm / 6.35mm(For Instrument like Guitar etc.,) Audio Adapter Interface
● Universal for Camera and Smartphone
● Support 48V Phantom Power Output
● Audio Preamp and Gain Control

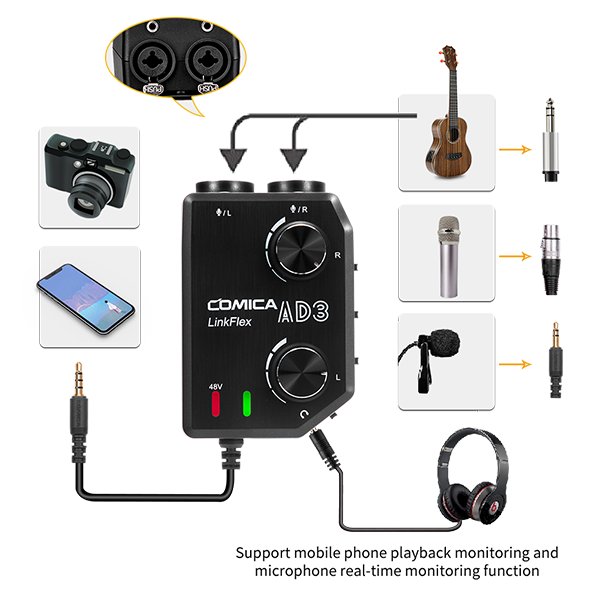

● Mic / Phone Two Way Audio Monitor

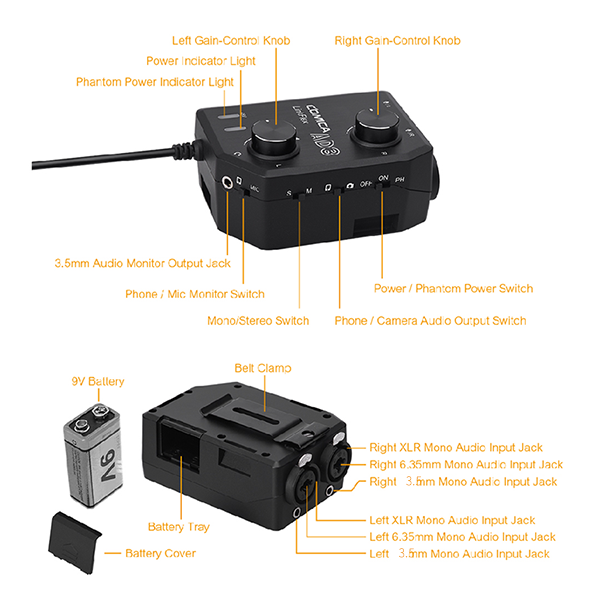

● Belt-clamp and Magic-tape Design at the Bottom
|
Input |
XLR x 2(L/R), 6.35mm x 2(L/R), 3.5mm x 2(L/R) |
|
Output |
3.5mm audio output, 3.5mm headphone output |
|
Frequency Response |
20Hz~20kHz,±1dB |
|
Gain Range |
Maximum increase +20dB |
|
THD+Noise |
<0.02%, RL=2kΩ, f=20Hz~20kHz,Vo=1Vrms |
|
Battery |
9V 6LR61/6F22 x 1 |
|
Size |
70 x 53 x 102mm |
|
Net Weight |
159g |
|
Working Temperature |
0℃~ +50℃ |
|
Storage Temperature |
-20℃ ~ +60℃ |
-
LinkFlex AD3
User Manual(EN) User Manual(CN)
